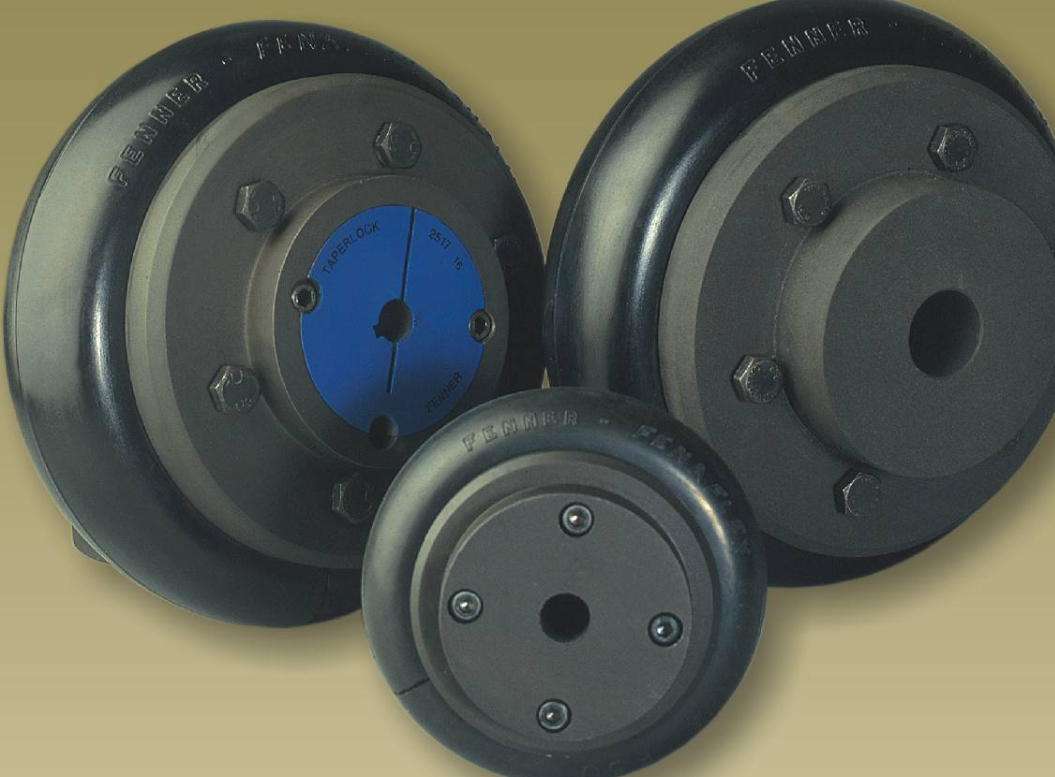

Tyre Couplings are highly elastic, lubrication free couplings that tolerate large amounts of misalignment in all planes as well as offering simple installation and inspection without disrupting the drive
Product Description
Simple time saving installation - motor and machine remains undisturbed whilst tyre is changed Large misalignment capability, 4° angular, up to 6mm parallel and 8mm axial Internal load carrying cords are wound in both directions, so there is no problem on reversing drives Tyres are available in standard and FRAS (Fire Resistant Anti Static) construction. ATEX approved. Simple visual inspection to aid maintenance Taper Lock® and pilot bore flanges Lubrication free Pump spacer and flywheel fixing variants available

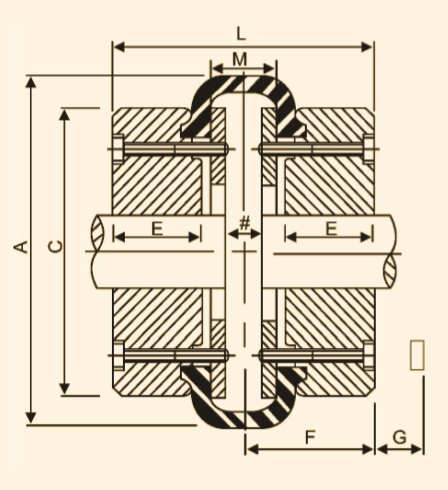

F-40 & 45

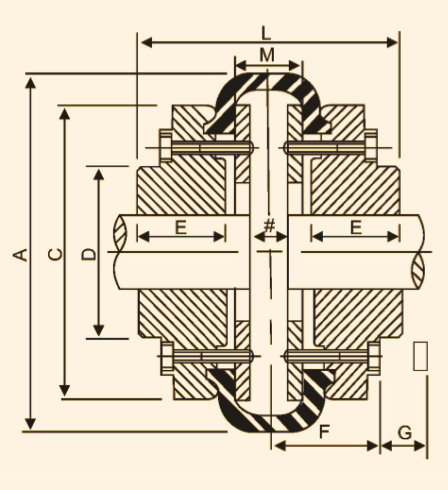

F-50 & 60
F-70 & 120

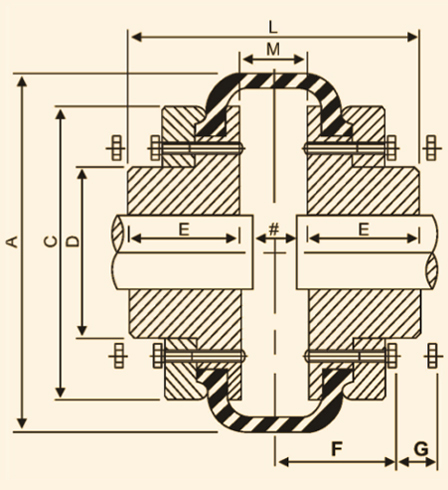

F-120 & 140

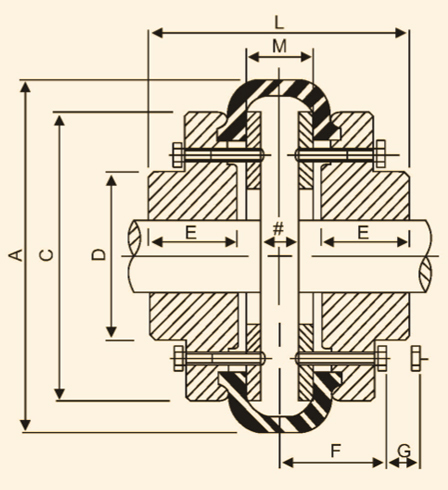

TYPE - H

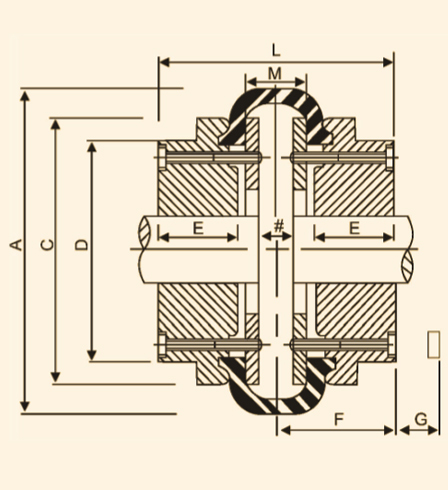

| Size | TYPE | F & H | TYPE B | A | C | G | M | No. of screws per flange | |||||||||||||
| Bush No. |
Max Bore |
L | D | E | F | ξ J |
* Approx weight Kg | Max Bore |
Min Bore |
L | D | E | F | Set Screw on key |
* Approx Weight Kg |
||||||
| F40 | 1008 | 25 | 67 | - | 22 | 33.5 | 29 | 1.4 | 30 | 11.00 | 67 | - | 22 | 33.5 | M5 | 2.0 | 104.0 | 82 | 43 | 23 | 4 |
| F45 | 1108 | 28 | 67 | - | 22 | 33.5 | 29 | 3.0 | 32 | 11.00 | 73 | - | 25 | 36.5 | M5 | 2.2 | 120.0 | 94 | 43 | 23 | 4 |
| F50 | 1210 | 32 | 78 | 79.0 | 25 | 39.0 | 38 | 3.1 | 38 | 16.00 | 92 | 79 | 32 | 46.0 | M5 | 4.0 | 133.5 | 100 | 43 | 28 | 4 |
| F60 | 1610 | 42 | 86 | 103.0 | 25 | 43.0 | 38 | 5.2 | 48 | 16.00 | 112 | 73 | 38 | 43.0 | M6 | 5.0 | 165.0 | 125 | 43 | 36 | 5 |
| F70 | 1610 | 42 | 92 | 76.0 | 25 | 50.5 | 38 | 7.4 | 55 | 19.05 | 132 | 82 | 45 | 50.5 | M6 | 8.0 | 197.0 | 144 | 10 | 42 | 5 |
| F80 | 2012 | 50 | 111 | 95.0 | 32 | 53.0 | 47 | 9.2 | 65 | 25.40 | 149 | 95 | 51 | 53.0 | M10 | 12.0 | 211.0 | 167 | 10 | 47 | 6 |
| F85 | 2012 | 50 | 112 | 103.0 | 32 | 53.5 | 47 | 12.5 | 70 | 31.75 | 154 | 103 | 53 | 53.5 | M12 | 14.0 | 222.0 | 179 | 13 | 48 | 6 |
| F90 | 2517 | 60 | 140 | 110.0 | 45 | 59.5 | 50 | 15.0 | 76 | 31.75 | 164 | 110 | 57 | 59.5 | M12 | 15.0 | 235.0 | 188 | 13 | 50 | 6 |
| F100 | 2517 | 60 | 148 | 124.0 | 45 | 61.5 | 50 | 20.0 | 85 | 31.75 | 178 | 124 | 60 | 61.5 | M12 | 21.0 | 254.0 | 216 | 13 | 58 | 6 |
| F110 | 2517 | 60 | 140 | 134.0 | 45 | 63.5 | 50 | 26.5 | 90 | 31.75 | 180 | 134 | 65 | 63.5 | M12 | 28.0 | 279.0 | 233 | 14 | 50 | 6 |
| F120 | 3020 | 75 | 157 | 152.0 | 51 | 70.0 | 68 | 35.5 | 102 | 38.10 | 207 | 152 | 76 | 70.0 | M12 | 41.0 | 314.0 | 264 | 14 | 55 | 6 |
| F140 | 3535 | 90 | 204 | 194.5 | 89 | 76.0 | 89 | 67.2 | 120 | 75.00 | 204 | 195 | 89 | 76.0 | M20 | 61.0 | 359.0 | 313 | 14 | 26 | 8 |
| F160 | 4040 | 100 | 220 | 216.0 | 102 | 78.0 | 110 | 91.0 | 140 | 75.00 | 220 | 216 | 102 | 78.0 | M20 | 86.0 | 402.0 | 345 | 19 | 16 | 8 |
| F180 | 4545 | 110 | 258 | 266.0 | 114 | 94.0 | 126 | 146.0 | 150 | 75.00 | 258 | 266 | 114 | 94.0 | M20 | 141.0 | 470.0 | 398 | 19 | 30 | 10 |
| F200 | 4545 | 110 | 278 | 266.0 | 114 | 103.0 | 126 | 182.0 | 150 | 75.00 | 276 | 266 | 114 | 103.0 | M20 | 179.0 | 508.0 | 429 | 19 | 48 | 12 |
| F220 | 5050 | 127 | 312 | 267.0 | 127 | 118.0 | 140 | 320.0 | 160 | 90.00 | 312 | 267 | 127 | 118.0 | M20 | 312.0 | 562.0 | 474 | 20 | 56 | 12 |
| F250 | - | - | - | - | - | - | - | - | 190 | 100.00 | 360 | 290 | 150 | 125.0 | M20 | 500.0 | 628.0 | 532 | 25 | 60 | 12 |
F-40 & 45
F-50 & 60
F-70 & 120
F-120 & 140

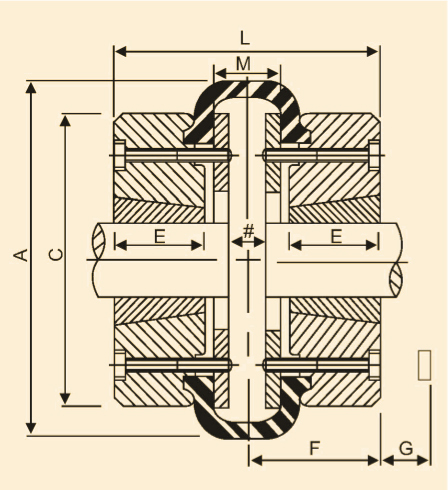

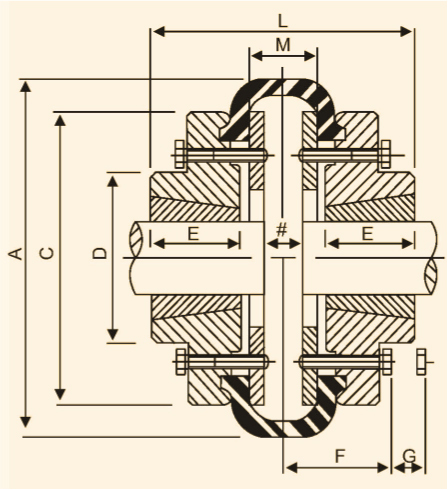

TYPE F
F-40 & 45
F-50
F-60

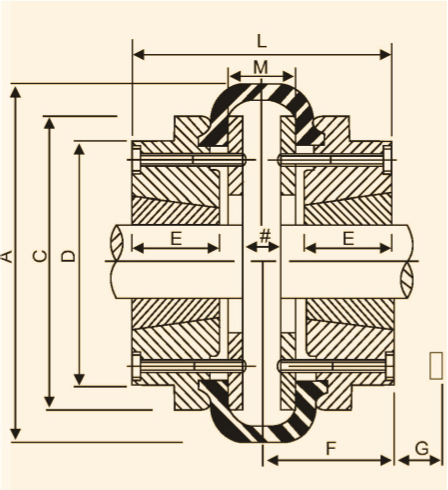

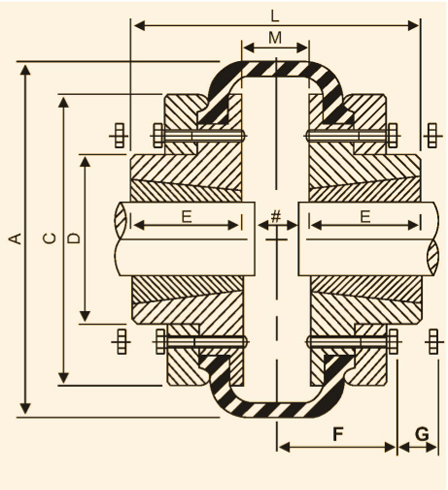

F-70 TO 120
