TYPE - F & H TYPE -B

HRC Couplings offer a range of hub and element selection to meet the demand for a low cost, general purpose spacer type flexible coupling. They allow for incidental misalignment, absorb shock loads and dampen out small amplitude vibrations. They are offered in both Pilot bore, Finished bore, and Taper bushed with both face and hub mount.

Product Description

HRC Couplings offer a range of hub and element selection to meet the demand for a low cost, general purpose spacer type flexible coupling. They allow for incidental misalignment, absorb shock loads and dampen out small amplitude vibrations. They are offered in both Pilot bore, Finished bore, and Taper bushed with both face and hub mount.

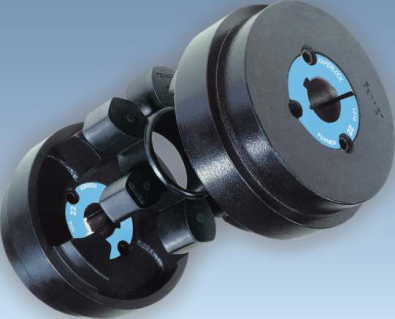

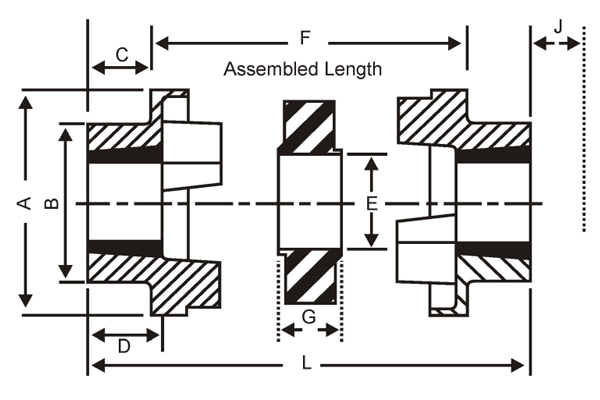

HRC ASSEMBLY- F & H TYPE (TAPER LOCK)

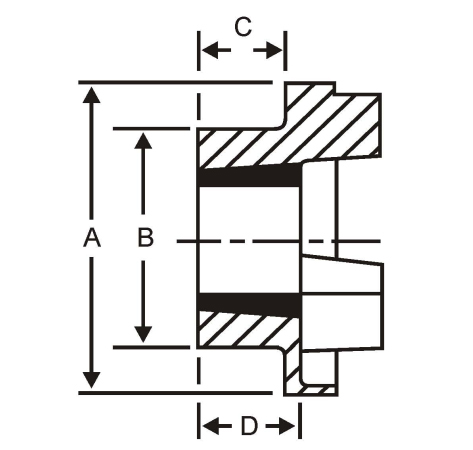

F Flage

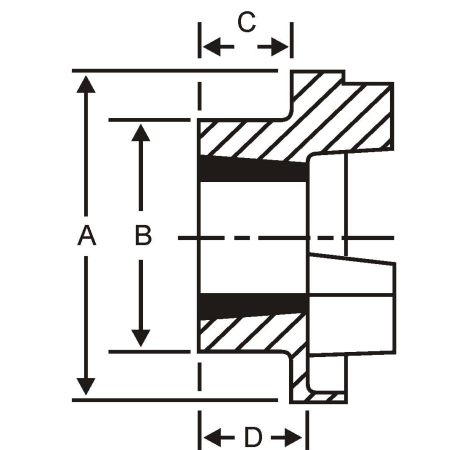

H Flage

Download Catalogue

TYPE - F & H

Size Power
at
100 rpm
kW		 Type F & H Type B A B E G
TLB
Size		 Min.
Bore		 Max.
Bore		 C D F L J* Min. Bore Max.
Bore 		C D F L
HRC 70 0.33 1008 09 25 20.0 24 26.0 66.0 29 10 32 20 24 26.0 66.0 69 60 31 18.0
HRC 90 0.84 1108 09 28 19.5 24 31.5 70.5 29 10 35 26 30 30.5 82.5 85 70 32 22.5
HRC 110 1.68 1210 11 32 18.5 27 46.0 83.0 38 10 55 37 45 45.0 119.0 112 100 45 29.0
HRC 110A 1.68 1610 14 42 18.5 27 46.0 83.0 38 - - - - - - 112 100 45 29.0
HRC 130 3.30 1610 14 42 18.0 27 54.0 90.0 38 14 60 47 56 54.0 148.0 130 105 50 36.0
HRC 150 6.28 2012 14 50 23.5 34 61.0 108.0 44 19 70 50 60 60.0 160.0 150 115 62 40.0
HRC 180 9'95 2517 16 60 34.5 47 74.0 143.0 48 35 80 58 70 73.0 189.0 180 125 77 49.0
HRC 230 20.90 3020 25 75 39.5 53 86.5 165.5 55 38 100 77 90 85.5 239.5 225 155 99 59.5
HRC 280 33.00 3525 35 90 51.0 67 106.5 208.5 67 48 115 90 105 104.5 284.5 275 206 119 74.5

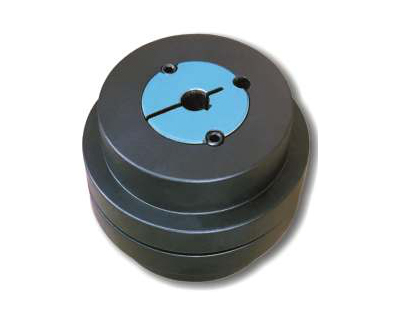

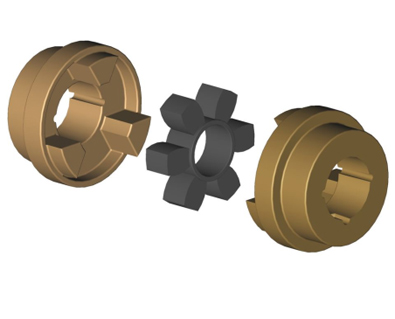

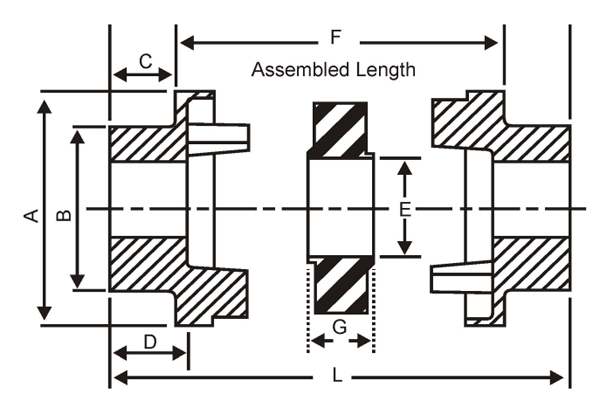

HRC ASSEMBLY- B TYPE

TYPE B
